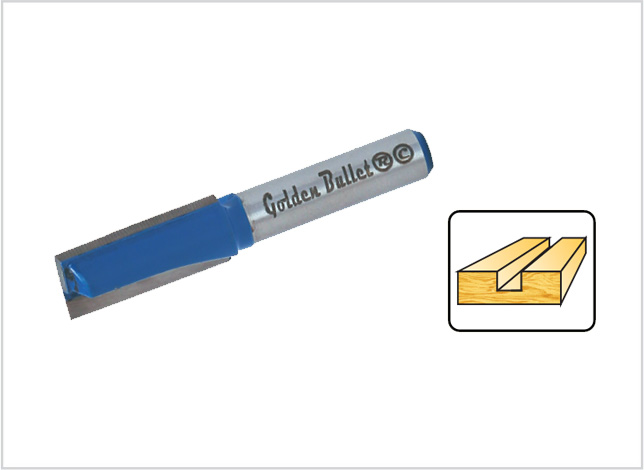

STRAIGHT BITS, TIP JOINT (TJ)
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
| 9502 TJ | 6 | 20 | - | 20x6 |
| 9503 TJ | 8 | 20 | - | 20x8 |
| 9504 TJ | 10 | 20 | - | 20x10 |
| 9506 TJ | 12.7 | 20 | - | 20x12.7 |
| 9507 TJ | 15 | 20 | - | 20x15 |
| 9503 TJY | 8 | 30 | - | 30x8 |
| 9504 TJY | 10 | 30 | - | 30x10 |
| 9506 TJY | 12.7 | 30 | - | 30x12.7 |
| 9508 TJY | 19 | 30 | - | 30x19 |
| 9503 TJM | 8 | 40 | - | 40x8 |
| 9504 TJM | 10 | 40 | - | 40x10 |
| 9506 TJM | 12.7 | 40 | - | 40x12.7 |
| 9504 TJL | 10 | 50 | - | 50x10 |
| 9506 TJL | 12.7 | 50 | - | 50x12.7 |

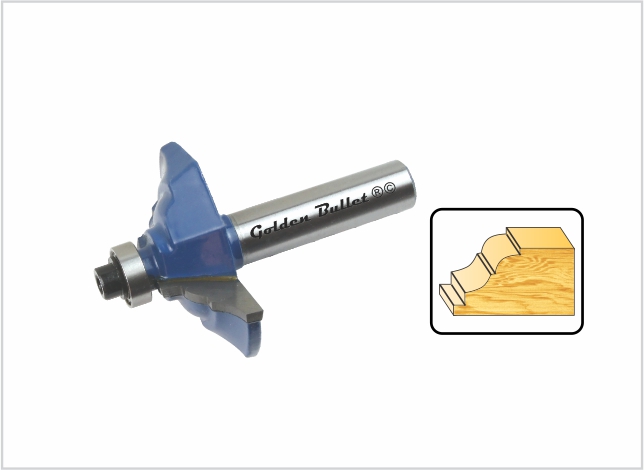

CORNER BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
| 135 | 38 | 10 | * | 15x10 |
| 140 | 50 | 10 | * | 22x10 |
| 141 | 50 | 12 | * | 22x12 |
| 145 | 55 | 15 | * | 25x15 |

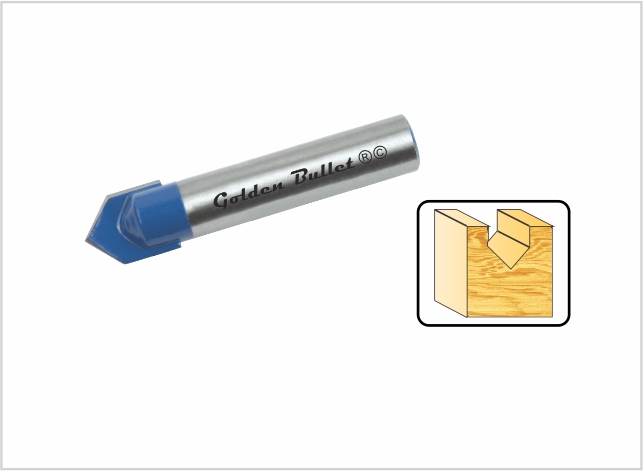

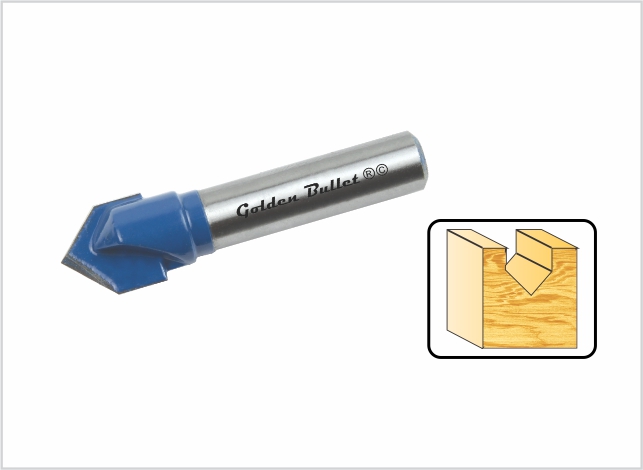

CENTER (CARVING) BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
| 934 | 12.7 | 12.7 | 45* | 12.7 x 12.7 |

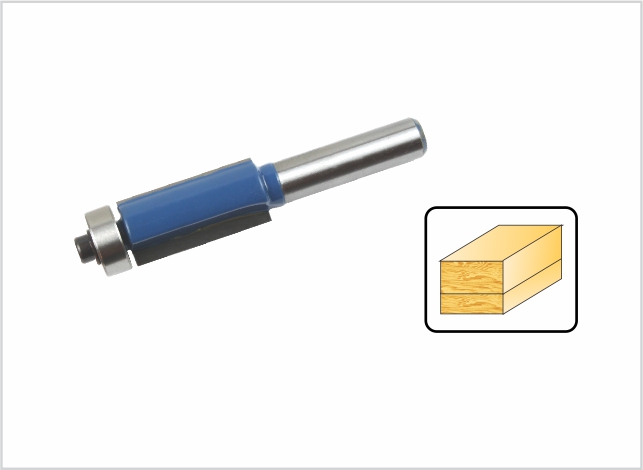

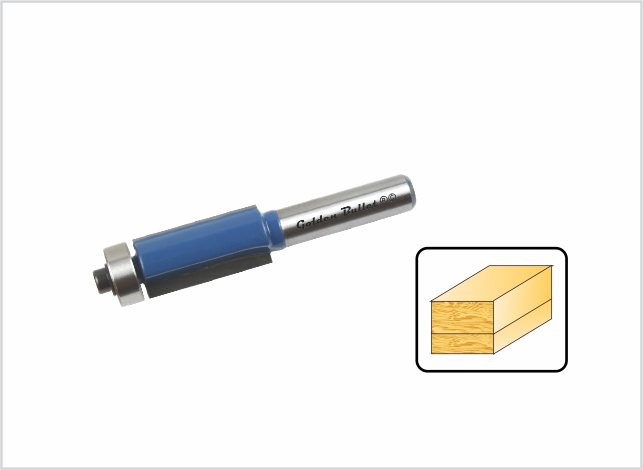

FLUSH TRIM BIT WITH BEARING
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
| 5001 | 7 | 20 | * | 20x7 |
| 5002 | 8 | 20 | * | 20x8 |
| 5003 | 10 | 25 | * | 25x10 |
| 5004 | 13 | 25 | * | 25x13 |

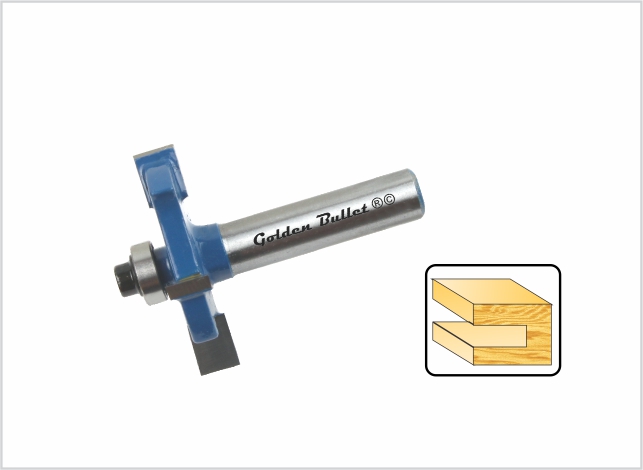

RABBITING BITS (FOUR SIDE)
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
| 123 | 3 | 35 | * | 10x5 |
| 124 | 4 | 35 | * | 12x6 |
| 126 | 6 | 35 | * | 14x7 |
| 128 | 8 | 35 | * | 16x8 |

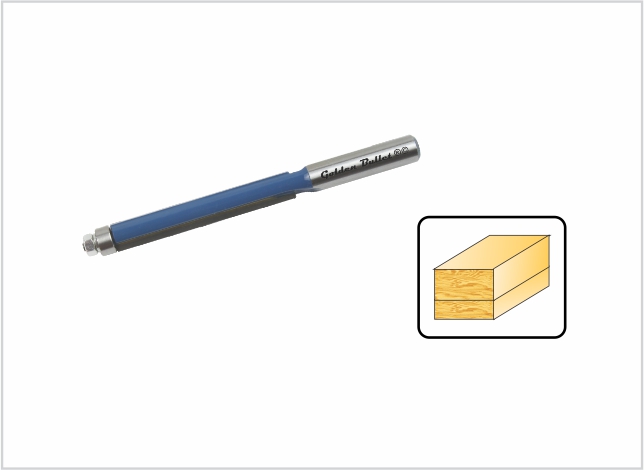

FLUSH TRIM BIT WITH BEARING (50mm long)
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 5002L | 8 | 50 | 50x8 | |
| 5003L | 10 | 50 | 50x10 | |
| 5004L | 3 | 50 | 50x13 |

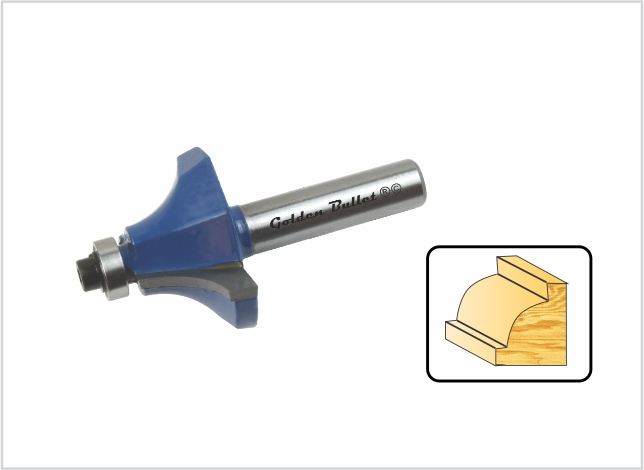

OVOLO BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9031 | 21 | 10 | 4 | 6x6 |
| 9032 | 25 | 12 | 6 | 8x8 |
| 9033 | 29 | 14 | 8 | 10x10 |
| 9034 | 33 | 16 | 10 | 12x12 |
| 9035 | 37 | 18 | 12 | 15x15 |
| 9036 | 43 | 21 | 15 | 19x19 |
| 9037 | 53 | 26 | 20 | 25x25 |
| 9038 | 63 | 31 | 25 | 30x30 |

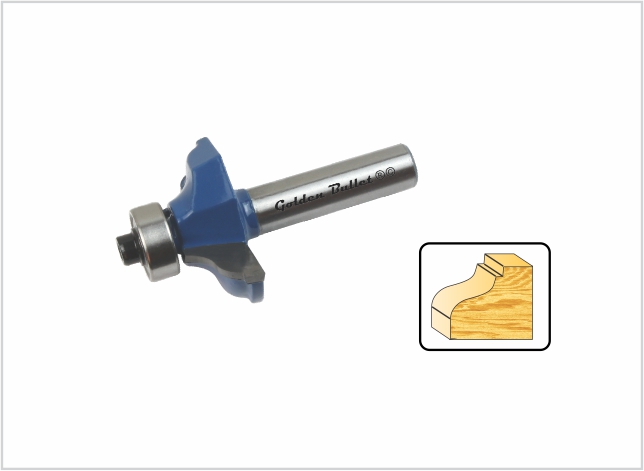

OGEE FILLET BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9071 | 29 | 14 | 3 | 10x10 |
| 9072 | 37 | 18 | 5 | 15x15 |
| 9073 | 33 | 10 | 4 | 10x8 |

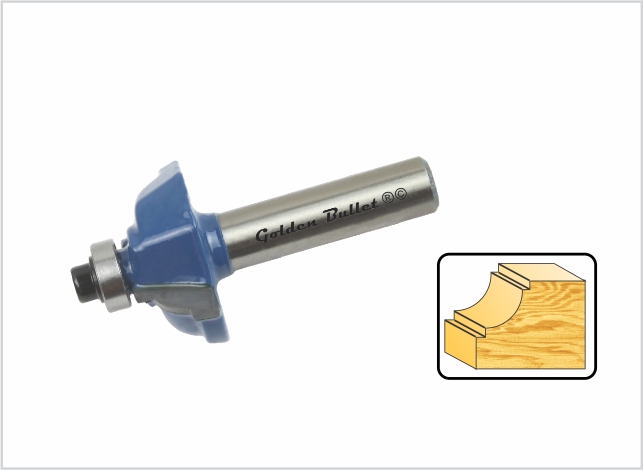

COVE BEAD BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9041 | 25 | 8 | 4 | 6x6 |
| 9042 | 29 | 10 | 6 | 8x8 |
| 9043 | 33 | 12 | 8 | 10x10 |

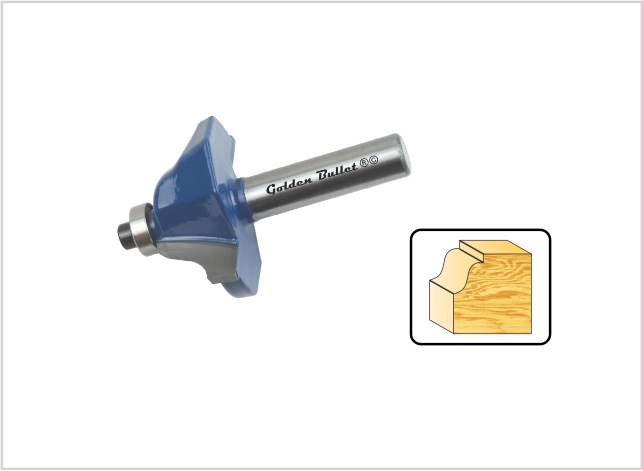

ROMAN OGEE BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9081 | 29 | 12 | 3 | 10x10 |
| 9082 | 37 | 16 | 5 | 15x15 |
| 9083 | 33 | 10 | 4 | 10x8 |
| 9084 | 38 | 12 | 6 | 15x12 |

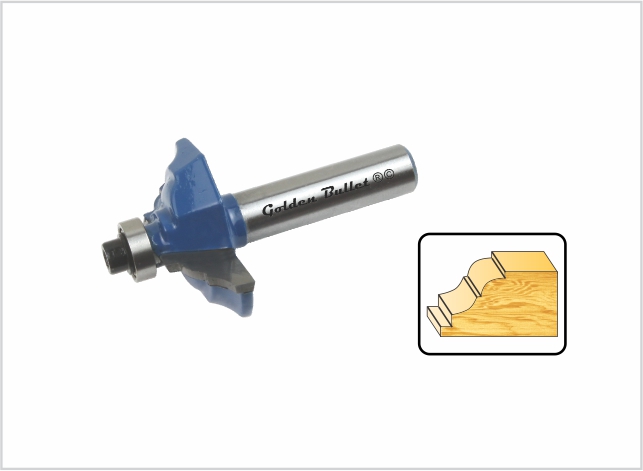

OVOLO COVE PROFILE BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9051 | 29 | 14 | 3 | 10x10 |
| 9052 | 37 | 18 | 5 | 15x15 |
| 9053 | 33 | 10 | 4 | 10x8 |
| 9054 | 38 | 12 | 6 | 15x12 |
RABBETING (SLOT) BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9091 | 35 | 4 | * | 4x12 |
| 9092 | 35 | 6 | * | 6x12 |
| 9093 | 35 | 8 | * | 8x12 |
| 9094 | 35 | 9 | * | 9x12 |
| 9095 | 35 | 10 | * | 10x12 |
| 9096 | 35 | 12 | * | 12x12 |
| 9097 | 35 | 15 | * | 15x12 |
| 9098 | 35 | 20 | * | 20x12 |
| 9099 | 35 | 25 | * | 25x12 |

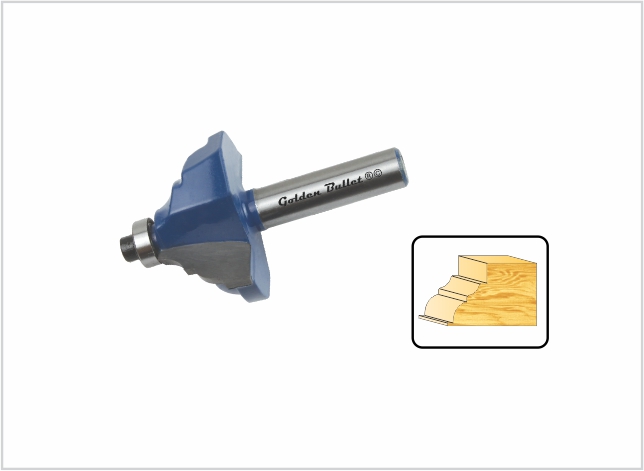

COVE-OVOLO PROFILE BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9061 | 29 | 14 | 3 | 10x10 |
| 9062 | 37 | 18 | 5 | 15x15 |
| 9063 | 33 | 10 | 4 | 10x8 |
| 9064 | 38 | 12 | 6 | 15x12 |

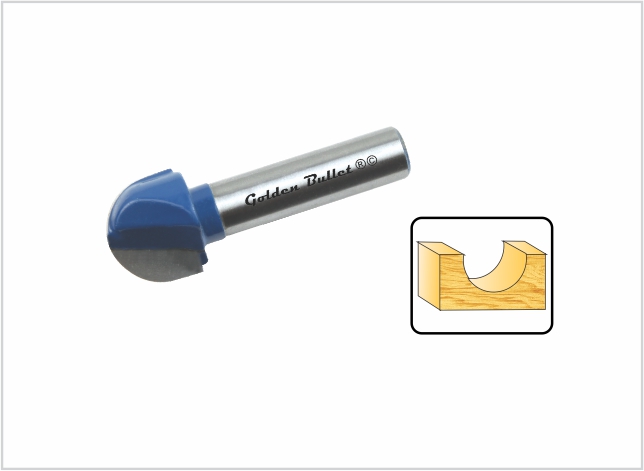

CORE BOX ROUND BITS (ROUND NOSE
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9101 | 6 | 8 | 3 | 6x5 |
| 9102 | 8 | 9 | 4 | 8x6 |
| 9103 | 10 | 10 | 5 | 10x7 |
| 9104 | 12 | 11 | 6 | 12x8 |
| 9105 | 14 | 12 | 7 | 14x9 |
| 9106 | 16 | 13 | 8 | 16x10 |
| 9107 | 18 | 14 | 9 | 18x12 |
| 9108 | 20 | 1 | 10 | 20x14 |

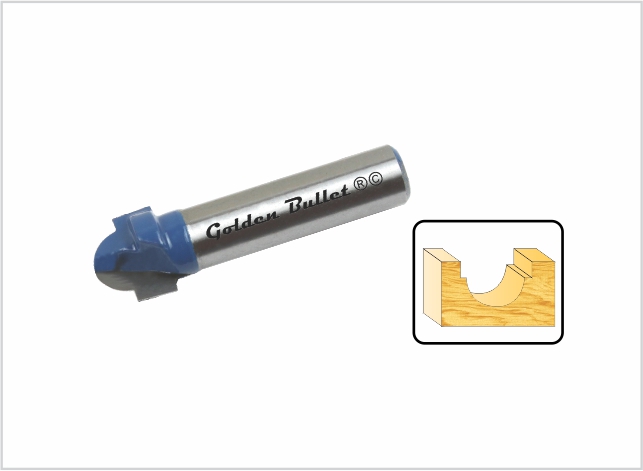

STEP & ROUND BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9201 | 10 | 8 | 3 | 10x5 |
| 9202 | 12 | 9 | 4 | 12x6 |
| 9203 | 14 | 10 | 5 | 14x7 |
| 9204 | 16 | 11 | 6 | 16x8 |
| 9205 | 18 | 12 | 7 | 18x9 |
| 9206 | 20 | 13 | 8 | 20x10 |
| 9207 | 22 | 14 | 9 | 22x12 |
| 9208 | 24 | 15 | 10 | 24x14 |
STRAIGHT BITS (38mm long)
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9502M | 6 | 38 | 38x6 | |
| 9503M | 8 | 38 | 38x8 | |
| 9504M | 10 | 38 | 38x10 |

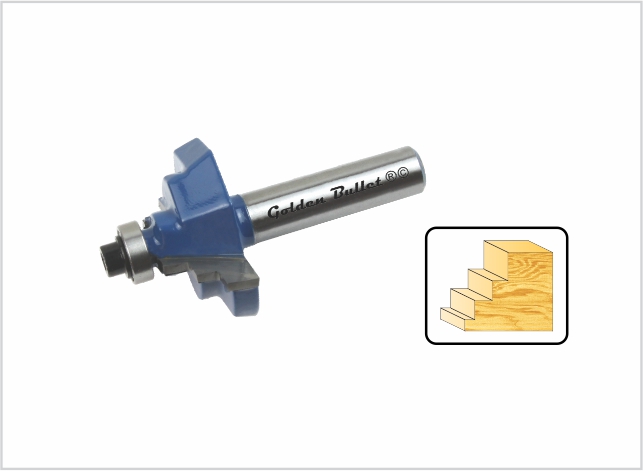

STEP BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9301 | 21 | 8 | * | 10x10 |
| 9302 | 25 | 12 | * | 15x15 |
| 9303 | 29 | 8 | * | 10x8 |
| 9304 | 33 | 12 | * | 15x12 |
STRAIGHT BITS (50mm long)
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9502L | 6 | 50 | 50x6 | |
| 9503L | 8 | 50 | 50x8 | |
| 9504L | 10 | 50 | 50x10 | |
| 9505L | 12 | 50 | 50x12 | |
| 9506L | 12.7 | 50 | 50x12.7 |

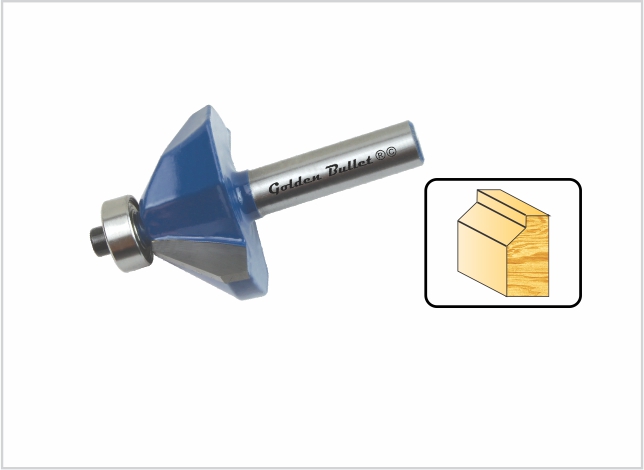

CHAMFER BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9401 | 29 | 10 | 45 | 10x10 |
| 9402 | 37 | 16 | 45 | 15x15 |
| 9403 | 33 | 10 | 45 | 10x8 |
| 9404 | 38 | 12 | 30 | 15x12 |
| 9405 | 40 | 14 | 30 | 12x10 |
| 9406 | 48 | 18 | 30 | 15x12 |

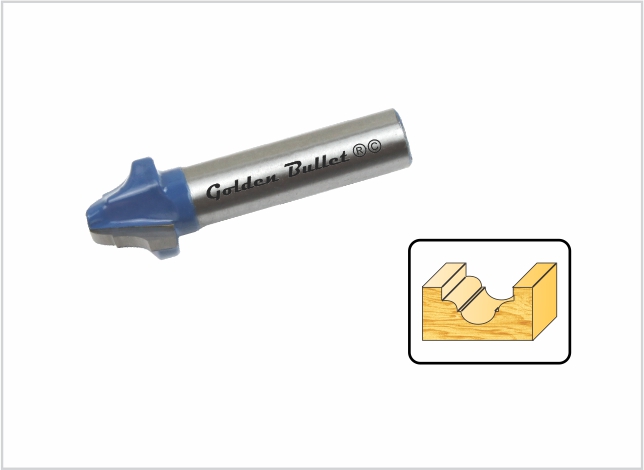

CLASSICAL PLUNGE BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9601 | 16 | 11 | 3 | 16x8 |
| 9602 | 20 | 13 | 4 | 20x10 |
| 9603 | 24 | 15 | 5 | 24x12 |
| 9604 | 28 | 18 | 6 | 28x14 |
| 9605 | 32 | 21 | 7 | 32x16 |
| 9606 | 36 | 24 | 8 | 36x18 |

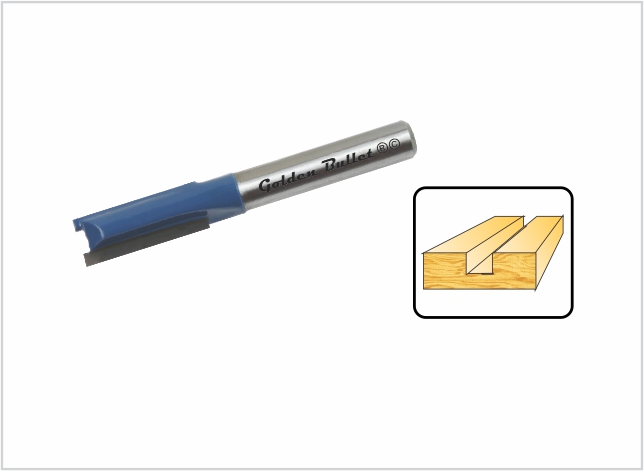

STRAIGHT BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9501 | 4 | 13 | * | 13x4 |
| 9502 | 6 | 20 | * | 20x6 |
| 9503 | 8 | 20 | * | 20x8 |
| 9504 | 10 | 25 | * | 25x10 |
| 9505 | 12 | 20 | * | 20x12 |
| 9506 | 12.7 | 25 | * | 25x12.7 |
| 9507 | 15 | 25 | * | 25x15 |
| 9508 | 19 | 20 | * | 20x19 |
| 9509 | 20 | 20 | * | 20x20 |
| 9510 | 25 | 20 | * | 20x25 |

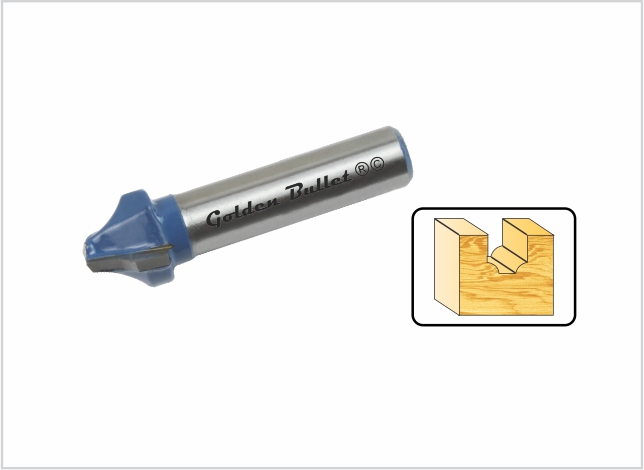

PLUNGE CUT BEADING BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9701 | 6 | 7 | 2 | 6x4 |
| 9702 | 8 | 8 | 3 | 8x5 |
| 9703 | 10 | 10 | 4 | 10x6 |
| 9704 | 12 | 11 | 5 | 12x7 |
| 9705 | 14 | 12 | 6 | 14x8 |
| 9706 | 16 | 13 | 7 | 16x9 |
| 9707 | 18 | 14 | 8 | 18x10 |
| 9708 | 20 | 15 | 9 | 20x12 |
| 9709 | 22 | 16 | 10 | 22x14 |
STEP OLOGO BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9801 | 29 | 14 | 3 | 10x10 |
| 9802 | 37 | 18 | 5 | 15x15 |
| 9803 | 33 | 10 | 4 | 10x8 |
| 9804 | 38 | 12 | 6 | 15x12 |

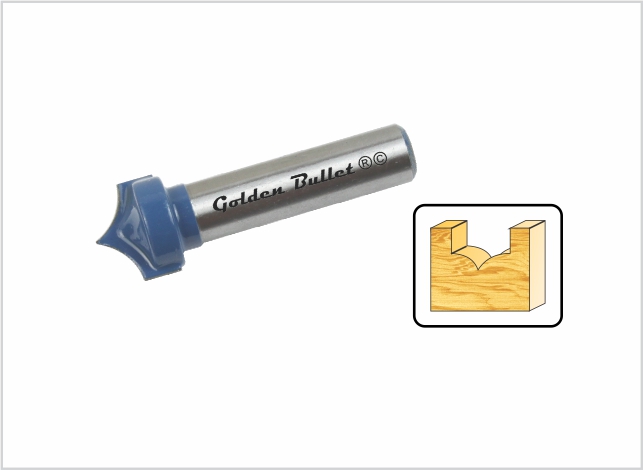

CENTER OLOGO (THREAD) BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9931 | 6 | 5 | 3 | 6x5 |
| 9932 | 8 | 6 | 4 | 8x6 |
| 9933 | 10 | 7 | 5 | 10x7 |
| 9934 | 12 | 8 | 6 | 12x8 |
| 9935 | 14 | 9 | 7 | 14x9 |
| 9936 | 16 | 10 | 8 | 16x10 |

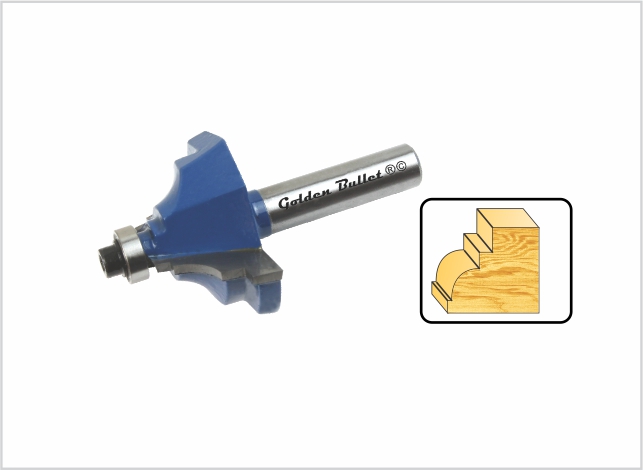

BOTTOM OLOGO BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9901 | 29 | 14 | 3 | 10x10 |
| 9902 | 37 | 18 | 5 | 15x15 |
| 9903 | 33 | 10 | 4 | 10x8 |
| 9904 | 38 | 12 | 6 | 15x12 |
CENTER (CARVING) BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9941 | 6 | 5 | 45o | 6x5 |
| 1942 | 8 | 6 | 45o | 8x6 |
| 1943 | 10 | 7 | 45o | 10x7 |
| 1944 | 12 | 8 | 45o | 12x8 |
| 1945 | 14 | 9 | 45o | 14x9 |
| 1946 | 16 | 10 | 45o | 16x10 |
| 1947 | 18 | 11 | 45o | 18x11 |
| 1948 | 20 | 12 | 45o | 20x12 |
| 1949 | 24 | 13 | 45o | 24x13 |
| 1950 | 30 | 14 | 45o | 30x14 |

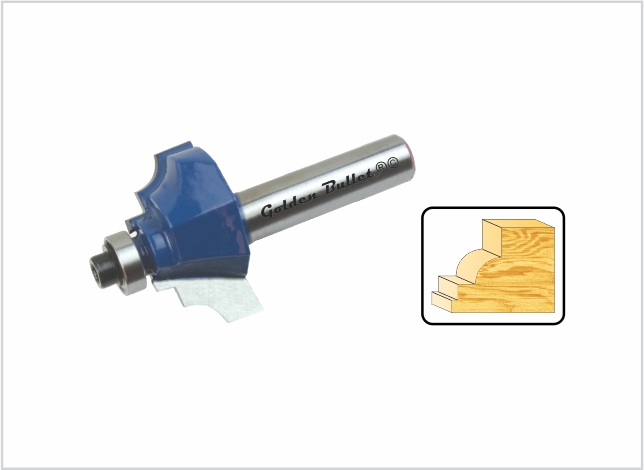

TOP OLOGO BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9911 | 29 | 14 | 3 | 10x10 |
| 9912 | 37 | 18 | 5 | 15x15 |
| 9913 | 33 | 10 | 4 | 10x8 |
| 9914 | 38 | 12 | 6 | 15x12 |

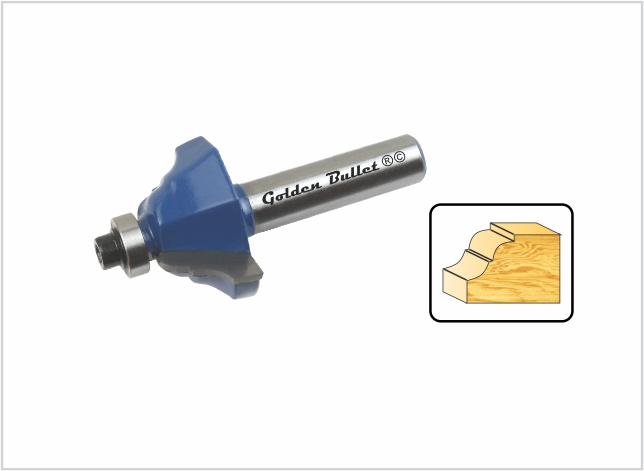

CLASSIC ROMAN OGEE (CENTER) BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9951 | 29 | 14 | 3 | 10x10 |
| 9952 | 37 | 18 | 5 | 15x15 |
| 9953 | 33 | 10 | 4 | 10x8 |
| 9954 | 38 | 12 | 6 | 15x12 |

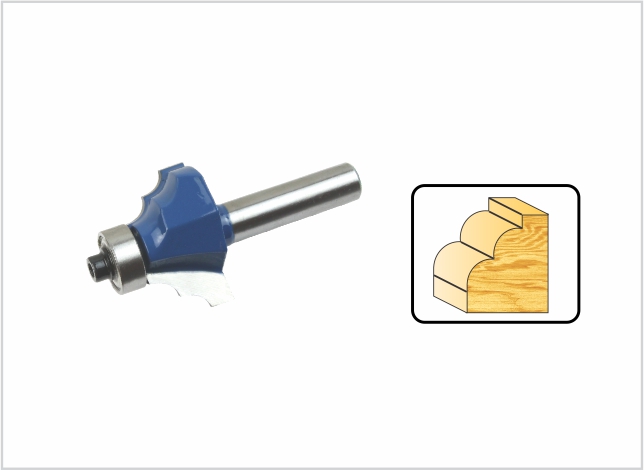

DOUBLE OLOGO BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 1921 | 29 | 14 | 3 | 10x10 |

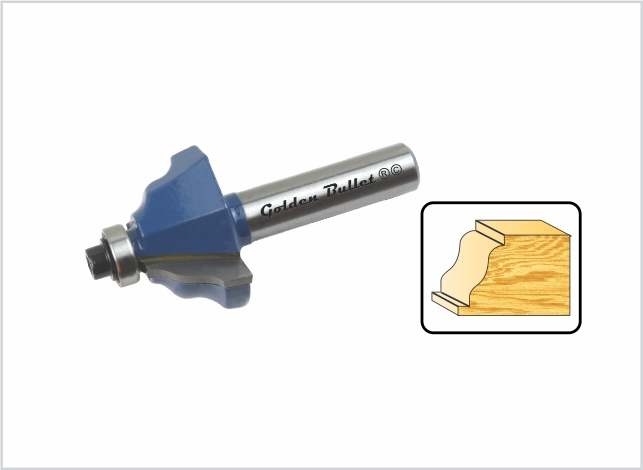

THUMB MOULD BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 1961 | 29 | 14 | 3 | 10x10 |
| 1962 | 37 | 18 | 5 | 15x15 |
| 1963 | 33 | 10 | 4 | 10x8 |
| 1964 | 38 | 12 | 6 | 15x12 |

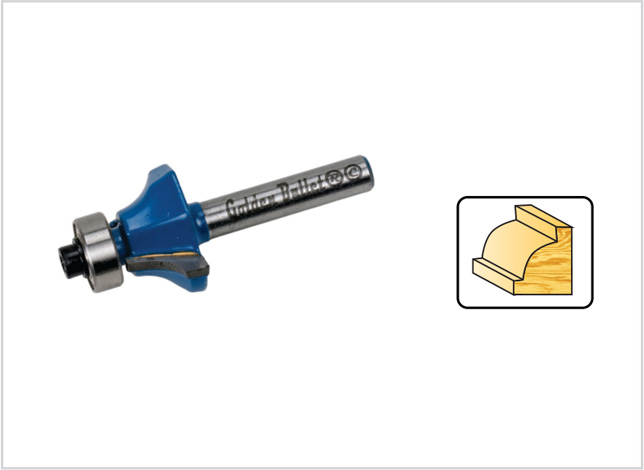

CORNER ROUND BITS / OVOLO BITS
| Item Code | Cutting Diameter (D) | Cutting Breadth (B) | Cutting | Radius (R) |
|---|---|---|---|---|
| 0106T (TS-3) | 26 | 6.5 | 6.5 | - |
CHAMFER BITS
| Item Code | Cutting Diameter (D) | Cutting Breadth (B) | Cutting Angle (A) |
|---|---|---|---|
| 0808T | 24.25 | 7.92 | 45 |
CENTER (CARVING) BITS
| Item Code | Cutting Diameter (D) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 0934T | 12.7 | 12.7 | 45 | 12.5 x 12.7 |
FLUSH TRIM BIT BEARING
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 5001 | 7 | 20 | 20x7 | |
| 5002 | 8 | 20 | 20x8 | |
| 5003 | 10 | 25 | 25x10 | |
| 5004 | 13 | 25 | 25x13 |

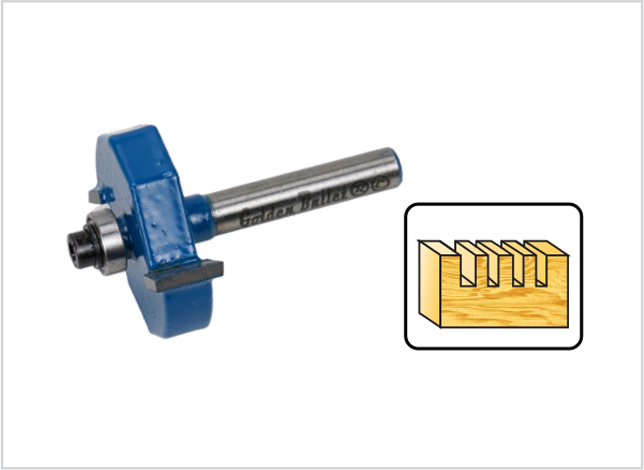

RABBETING BITS - 2 TIPS
| Item Code | Cutting Diameter (D) | Cutting Breadth (B) | Cutting Height (H) |
|---|---|---|---|
| 9092T | 35 | 6 | 13 |
| 9093T | 35 | 8 | 13 |
| 9095T | 35 | 10 | 13 |

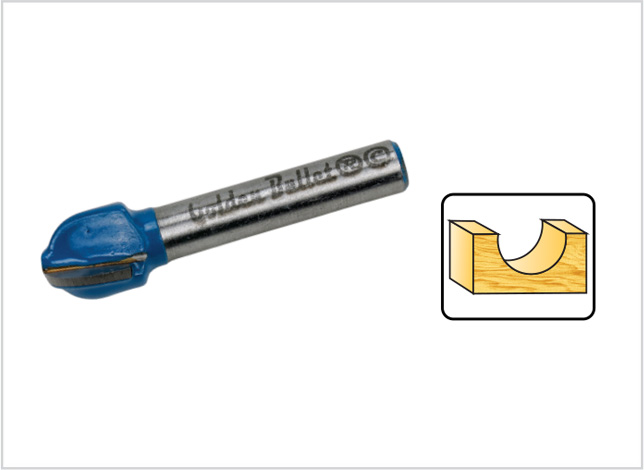

COVE BOX ROUND BITS ( ROUND NOSE )
| Item Code | Cutting Diameter (D) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9104T | 12 | 11 | 6 | 12x8 |
| 9105T | 14 | 12 | 7 | 14x9 |
| 9106T | 16 | 13 | 8 | 16x10 |
STRAIGHT BITS
| Item Code | Cutting Dia (A) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9501 | 4 | 13 | * | 13x4 |
| 9502 | 6 | 20 | * | 20x6 |
| 9503 | 8 | 20 | * | 20x8 |
| 9504 | 10 | 25 | * | 25x10 |
| 9505 | 12 | 20 | * | 20x12 |
| 9506 | 12.7 | 25 | * | 25x12.7 |
| 9507 | 15 | 25 | * | 25x15 |
| 9508 | 19 | 20 | * | 20x19 |
STRAIGHT BITS, TIP JOINT (TJT)
| Item Code | Cutting Diameter (D) | Cutting Length (H) | Radius (R) | Cutting Area |
|---|---|---|---|---|
| 9502 TJT | 6 | 20 | - | 20x6 |
| 9503 TJT | 8 | 20 | - | 20x8 |
| 9504 TJT | 10 | 20 | - | 20x10 |
| 9506 TJT | 12.7 | 20 | - | 20x12.7 |
TRIMMER BITS
1/4" (6.35mm) Shank only

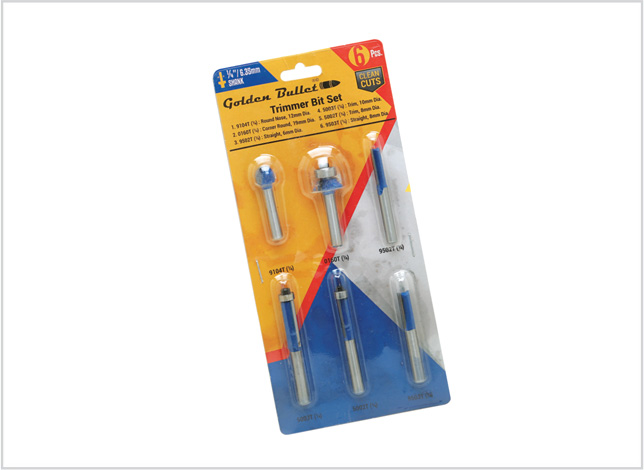

TRIMMER BIT SET6 pcs
1/4" (6.35mm) Shank only

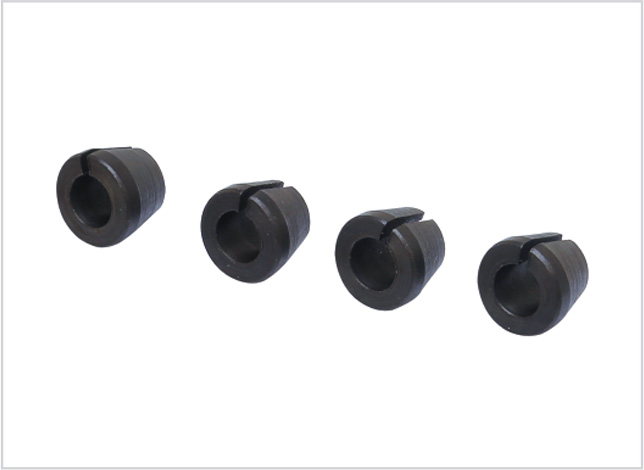

TRIMMER COLLETS6mm & 1/4"
